Introduction
Water heaters are an essential appliance in many households, providing hot water for various activities such as bathing, washing dishes, and doing laundry. A key component of a water heater is the heating element, which is responsible for raising the water temperature. However, over time, these elements can deteriorate or become faulty, leading to a decrease in water temperature or even a complete loss of hot water. To maintain a properly functioning water heater, it is essential to regularly test the water heater element.
Testing the water heater element involves checking its performance and verifying if it is in good condition. This process helps identify issues with the element early on, preventing any major problems down the line. By conducting regular tests, homeowners can ensure the efficient operation of their water heaters and avoid unexpected cold showers.
There are different types of water heater elements, including both electric and gas-powered options. Electric water heaters typically have two heating elements, one located at the top and the other at the bottom of the tank. Gas water heaters, on the other hand, utilize a burner assembly to heat the water. Regardless of the type, testing the element is crucial to ensure proper functioning.
One of the main reasons to test the water heater element is to assess its efficiency. Over time, sediment buildup can occur, especially in regions with hard water. This sediment can settle on the heating element and hinder its performance. When the element becomes covered in sediment, it takes longer to heat the water, leading to increased energy consumption and higher utility bills. Regular testing allows homeowners to detect this buildup and take necessary cleaning measures to improve the element’s efficiency.
Another important aspect of testing the water heater element is safety. Faulty or damaged elements can pose a safety risk in a household. For example, if an element becomes cracked or develops a fault, it may lead to water leaks or even electrical hazards. By regularly testing the water heater element, homeowners can catch potential safety concerns and address them promptly, ensuring the well-being of their household.
Testing a water heater element is relatively simple, and homeowners can perform it without professional assistance. The first step is to turn off the power supply to the water heater to avoid any electrical accidents. For electric water heaters, this is done by flipping the circuit breaker or removing the fuse dedicated to the water heater. Gas-powered water heaters should have their gas supply disconnected.
Once the power supply is turned off, the next step is to remove the access covers. For electric water heaters, the covers are typically located at the top and bottom of the tank. Gas water heaters may have a single access cover. Using a screwdriver or a wrench, carefully remove the covers to expose the heating elements.
With the access covers removed, the heating elements are now visible. It is essential to visually inspect each element for any visible signs of damage, such as corrosion, cracks, or loose connections. If any issues are detected, it is recommended to consult a professional for further inspection and repair.
After visually assessing the elements, it is time to test their functionality. For electric water heaters, a multimeter can be used to measure the resistance of each element. The resistance should match the manufacturer’s specifications. If the reading is significantly higher or lower, it indicates a faulty element that needs replacement.
Gas water heaters do not require resistance testing. Instead, homeowners can visually inspect the burner assembly for any signs of damage, such as rust or dirt. Additionally, they can listen for any unusual sounds or observe irregular flame patterns, which may indicate a problem with the burner.
In conclusion, testing the water heater element is vital for maintaining a properly functioning water heater. Regular testing can help identify issues with the element’s efficiency and ensure the safety of the household. By following simple steps and conducting visual inspections or resistance testing, homeowners can proactively address any problems with their water heater elements and enjoy hot water without interruptions.

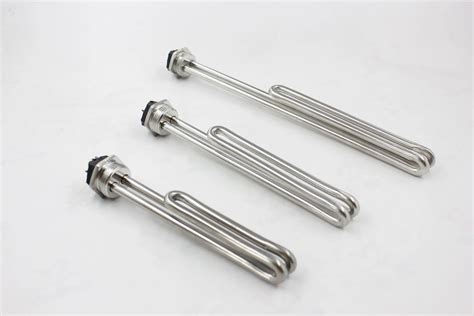

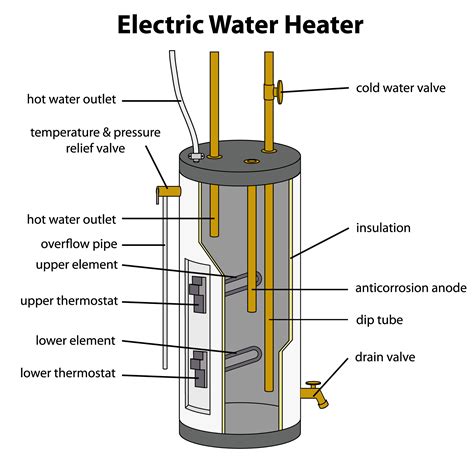

Understanding Water Heater Elements
A water heater element is a crucial component of a water heating system. It is responsible for heating the water within the tank, ensuring that it reaches the desired temperature for your daily activities such as taking showers, washing dishes, or doing laundry. To properly understand and maintain your water heater, it is essential to have knowledge about its basic components and how they function within the heating system.
The two main types of water heater elements are the heating element and the thermostat. The heating element is the primary component responsible for heating the water. It consists of a metal rod, usually made of copper or stainless steel, enclosed in a non-conductive material called an insulator. The heating element is submerged in the tank and is connected to a power source through wiring. When the power is turned on, an electric current flows through the heating element, which in turn generates heat. This heat is transferred to the surrounding water, gradually increasing its temperature until it reaches the desired level.
The thermostat, on the other hand, is a temperature-sensitive device that regulates the operation of the heating element. It acts as a control switch, turning the heating element on or off based on the temperature of the water. When the water temperature drops below the desired level, the thermostat signals the heating element to turn on and start heating the water. Once the water reaches the desired temperature, the thermostat shuts off the power supply to the heating element, preventing the water from becoming excessively hot. This cycling on and off ensures that the water stays within the desired temperature range.
Testing the water heater element is crucial for maintaining its efficiency and ensuring that it continues to heat the water properly. There are several indicators that may suggest a faulty element, such as inadequate hot water supply, fluctuating water temperature, or no hot water at all. To test the element, you will need a voltage tester, an ohm meter, and some basic knowledge of electrical safety precautions.
Start by turning off the power supply to the water heater at the circuit breaker. This step is essential to prevent any electrical accidents during the testing process. Once the power is completely turned off, remove the access panels on the side of the water heater to expose the heating element and thermostat.
Using a voltage tester, check if there is any electrical current present at the heating element. Touch one probe of the voltage tester to the metal base of the heating element and the other probe to a grounded metal object. If the voltage tester doesn’t detect any current, it indicates a problem with the power supply or the connection to the heating element.
To further diagnose the problem, use an ohm meter to measure the resistance of the heating element. Disconnect the electrical wiring from the heating element and attach the probes of the ohm meter to the terminals of the heating element. If the meter reads infinite resistance or shows no change in resistance when the element is turned on, it suggests a faulty heating element that needs to be replaced.
Additionally, it is also essential to check the condition of the thermostat. Inspect the thermostat for any signs of damage, such as burnt or melted components. Use a multimeter to test the continuity of the thermostat. If the meter doesn’t show any continuity reading, it indicates a faulty thermostat that should be replaced.
Regularly testing and maintaining the water heater element ensures its proper functioning and extends its lifespan. If you encounter any issues or are unsure about the testing process, it is recommended to consult a professional plumber or an electrician who specializes in water heater repairs.
Identifying Signs of a Faulty Water Heater Element
When it comes to your hot water supply, a faulty water heater element can cause numerous issues. It’s important to be able to identify the signs of a potential problem so that you can address it promptly. Here are some common symptoms that indicate a faulty water heater element:
1. Lukewarm Water:
If you notice that your hot water is not reaching the desired temperature or it takes longer than usual to heat up, the water heater element might be the culprit. The heating element is responsible for heating the water inside the tank. However, over time, mineral deposits can accumulate on the element, reducing its efficiency. This buildup prevents the element from generating enough heat, resulting in lukewarm water.
2. Strange Noises:
If you hear unusual sounds coming from your water heater, such as popping, cracking, or rumbling noises, it could indicate a problem with the water heater element. Sediment and mineral deposits can settle on the element, causing it to overheat. As a result, the trapped air bubbles burst and create those strange noises. Ignoring these sounds can lead to more severe damage and potential leaks.
3. No Hot Water at All:
Perhaps the most obvious sign of a faulty water heater element is the absence of hot water. If you turn on the faucet and only cold water comes out, it may indicate that the element is not functioning correctly. A burned-out or broken element cannot heat the water at all. In some cases, the thermostat that controls the element may also be faulty, resulting in no hot water supply.
4. Inconsistent Water Temperature:
An erratic water temperature is another indication of a faulty water heater element. If you experience fluctuations in water temperature while using hot water, it could signify an issue with the element. The element’s inability to maintain a consistent temperature usually occurs due to a buildup of sediment or a damaged heating coil. This inconsistency can be frustrating and disrupt your daily activities.
5. Rapidly Depleting Hot Water Supply:
If you find that your hot water supply runs out quickly or you can only obtain a small amount of hot water before it turns cold, it suggests a problem with the water heater element. Sediment and mineral buildup can accumulate on the element’s surface and create an insulating barrier, preventing efficient heat transfer. As a result, the hot water supply decreases, causing inconvenience.
In conclusion, being aware of the signs that indicate a faulty water heater element is crucial for maintaining a steady supply of hot water. If you notice any of these symptoms, it is recommended to seek professional assistance to diagnose and repair the issue. Regular maintenance, such as flushing the tank to remove sediment, can help extend the lifespan of the water heater element and ensure its optimal performance.
Gathering the Necessary Tools
Before you begin testing the water heater element, it’s essential to gather the necessary tools. Here is a list of tools you will need to successfully complete the test:
1. Multimeter: A multimeter is a versatile device used to measure electrical voltage, resistance, and current. It is an indispensable tool for testing the water heater element.
2. Screwdriver: A screwdriver is needed to open the access panel of the water heater and remove any covers or screws that may be securing the element.
3. Safety Gloves: Safety should always be a priority when working with electrical components. Wear a pair of safety gloves to protect your hands from potential hazards.
4. Voltage Tester: A voltage tester is used to check if there is any electrical current present in the water heater. This tool ensures that the power is completely disconnected before starting the testing process.
5. Bucket or Towel: Since the water tank needs to be partially drained for the testing process, it is advisable to have a bucket or a towel handy to collect any water that may come out during the testing.
6. Pen and Paper: It’s a good practice to keep a pen and paper nearby to jot down any readings or notes during the testing. This information can be helpful for reference or troubleshooting purposes.
7. Replacement Parts: If you suspect that the water heater element is faulty and needs to be replaced, it is wise to have replacement parts readily available. This will save you time by avoiding multiple trips to the store.
8. Flashlight: Sometimes, the water heater access panel may be located in a dimly lit area. A flashlight will help you see clearly and navigate the space while working on the water heater element.
By gathering these essential tools, you’ll be fully prepared to test the water heater element efficiently and safely. It’s crucial to have all the necessary equipment before you begin the procedure to avoid any delays or potential safety hazards.
Ensuring Safety Precautions
When it comes to testing a water heater element, safety should always be a priority. Working with electrical components can be hazardous, so it is crucial to follow proper safety guidelines. By taking a few extra precautions, you can ensure a safe testing process.
1. Shutting off the Power Supply: Before starting any work on the water heater, make sure to shut off the power supply to avoid electric shocks and other accidents. The water heater should have a dedicated breaker in your electric breaker box. Locate the correct breaker and flip it to the “off” position. To be extra cautious, use a voltage tester to confirm that there is no electricity running to the water heater. Only proceed with the testing once you are sure the power is completely shut off.
2. Draining the Water Heater: Before testing the water heater element, it is essential to drain the water heater tank to prevent any potential water damage or scalding. Start by turning off the cold water supply valve that feeds into the water heater. Next, locate the drain valve situated near the bottom of the tank. Attach a garden hose to the drain valve and direct the other end to a floor drain or outside. Open the drain valve and let the water flow out completely. Once the tank is empty, you can proceed with the testing.
3. Wearing Protective Gear: When working on any electrical components, it is vital to wear appropriate protective gear to minimize the risk of injuries. Ensure you have safety goggles, insulated gloves, and non-conductive footwear. These safety gears will protect you from potential electrical shocks and burns. Additionally, wearing long-sleeved clothes and avoiding any loose accessories is recommended to prevent accidents.
4. Familiarize Yourself with the Water Heater Manual: Each water heater model may have specific instructions and safety measures, so it is crucial to consult the manufacturer’s manual before conducting any tests. The manual will provide you with detailed information on the location of the heating elements, their specifications, and the recommended testing procedures. Following the manufacturer’s instructions will ensure a safer and more accurate testing process.
5. Use a Circuit Tester: A circuit tester, also known as a multimeter or voltage tester, is an essential tool for testing water heater elements. It allows you to measure the electrical current and voltage to determine if the heating element is functioning correctly. To use the circuit tester, set it to the “volts AC” or “AC” setting, and ensure it is properly calibrated. While wearing gloves, carefully touch the tester’s probes to the heating element’s terminals. If the element is functioning correctly, the tester should display the expected voltage reading. If the reading is significantly lower or if there is no reading at all, it indicates a faulty or damaged heating element that needs replacement.
Remember, testing a water heater element involves working with electricity and heating elements. If you are not confident in your ability to safely perform the tests, it is recommended to seek professional assistance to avoid any accidents or further damage to the water heater.
Locating the Water Heater Element
When it comes to testing your water heater element, the first step is to locate it. The water heater element is typically found inside the unit’s access panel. Before you begin accessing the element, make sure to turn off the power supply to the water heater to avoid any potential accidents or electrical shocks.
To locate the access panel, first, carefully inspect your water heater. Most water heaters are cylindrical in shape and have a metal housing. Look for a small door or panel on the side of the unit. This is where the element is usually located. The access panel may be secured with screws or latches, so you may need a screwdriver or a similar tool to open it.
Once you have located the access panel, carefully remove any screws or latches securing it in place. Place the screws in a safe location for easy reassembly later. Gently pull or push the panel to open it. Be cautious as the edges of the panel may be sharp, so it’s advisable to wear gloves or use a cloth to protect your hands.
As you open the access panel, you will see the interior components of the water heater. The element should be visible and identifiable by its cylindrical shape and electrical connections. It is usually made of metal, such as steel or copper, and is situated at the bottom or side of the water heater tank.
Take a moment to examine the element and familiarize yourself with its location. Make sure you know how it is connected to the electrical system and how it can be removed for testing or replacement purposes. If necessary, refer to your water heater’s instruction manual for more specific information about the element’s location and connections.
Before proceeding with any testing, it’s essential to ensure that the power supply to the water heater is turned off. This step helps prevent any accidental electrical shocks during the process. Locate the circuit breaker or fuse that controls the water heater and switch it off. For extra safety, it’s also recommended to turn off the main power supply to your home.
After following the necessary precautions and finding the water heater element, you are now ready to proceed with testing it. Testing the element will help determine if it’s functioning correctly or if it needs to be replaced. The next section will provide detailed instructions on how to test the water heater element effectively.
Testing the Water Heater Element
Testing the water heater element is an essential task to ensure the proper functioning of your water heater. In this section, we will guide you through the step-by-step process of testing the resistance of the water heater element using a multimeter. Before we begin, please remember to follow safety precautions and turn off the power supply to the water heater to avoid any electric shocks or accidents.
Step 1: Turn off the Power Supply
The first and most crucial step is to turn off the power supply to the water heater. Locate the circuit breaker panel in your home and switch off the breaker that supplies power to the water heater. This step ensures your safety during the testing process.
Step 2: Disconnect the Wires
After turning off the power supply, you need to disconnect the wires connected to the water heater element. Depending on the type of water heater, you may find access panels on the front or side. Remove these panels using a screwdriver or any other appropriate tool.
Once you have opened the access panels, locate the wires connected to the water heater element. Carefully disconnect them by loosening the screws or removing the wire nuts. Take note of how the wires were connected for later reconnection.
Step 3: Prepare the Multimeter
Now, it’s time to prepare your multimeter for testing the water heater element. Set the multimeter to the ohms or resistance mode. This mode allows the multimeter to measure the electrical resistance of the element. Ensure that the multimeter probes are connected securely to the corresponding ports on the multimeter.

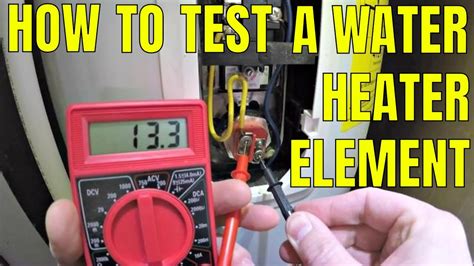

Step 4: Test the Resistance
Place the multimeter probes on the terminals of the water heater element. It’s essential to ensure a good connection between the probes and the terminals for accurate readings. Hold the probes firmly in place and take note of the resistance reading displayed on the multimeter.
An operational water heater element usually has a resistance between 10 and 20 ohms. However, it’s advisable to consult your water heater’s user manual or contact a professional if you are unsure about the expected resistance value.
Step 5: Compare the Reading
Compare the resistance reading obtained from the previous step with the expected resistance range. If the obtained resistance falls within the expected range, it indicates that the water heater element is functioning correctly.
If the resistance reading is significantly higher or lower than the expected range, it may indicate a faulty element. In such cases, it’s advisable to replace the water heater element or seek professional assistance for further diagnosis.
Step 6: Reconnect the Wires
Once you have completed the resistance testing and are satisfied with the results, it’s time to reconnect the wires to the water heater element. Refer back to the notes you took while disconnecting the wires and carefully reconnect them, ensuring a secure connection.
Tighten the screws or reapply the wire nuts to firmly secure the wires in place. Make sure there are no loose connections, as this can lead to undesirable electrical issues or malfunctions.
Step 7: Turn on the Power Supply
With the testing and reconnection complete, it is time to turn on the power supply to the water heater. Return to the circuit breaker panel and switch on the breaker that supplies power to the water heater. This step restores the electrical power to the water heater, allowing it to function as intended.
Wait for some time to allow the water heater to heat up and monitor its performance. If you notice any unusual behavior or if the water is not heating as expected, it may indicate underlying issues that require professional attention.
Testing the water heater element’s resistance is a straightforward process that can help identify potential problems and ensure the efficient operation of your water heater. By following the steps outlined in this guide and practicing caution, you can confidently test the water heater element and ensure optimal performance.
Interpreting the Test Results
Once you have completed the test to determine the resistance of your water heater element, it is important to interpret the results correctly. The resistance readings obtained during the test will provide valuable information about the condition of the element.
Normal Resistance Range:
The resistance readings for a functioning water heater element will typically fall within a specific range. This range can vary depending on the type and size of the element, but generally, the normal resistance value should be around 10 to 16 ohms. If the resistance readings you obtained during the test fall within this range, it indicates that the water heater element is in good condition and functioning properly.
Low Resistance:
If the resistance readings are lower than the normal range (below 10 ohms), it suggests that the water heater element has a short circuit. This could be due to a damaged insulation layer, a loose connection, or a fault in the element itself. In such cases, the element should be replaced to prevent any potential risks or malfunctions.
High Resistance:
On the other hand, if the resistance readings obtained are higher than the normal range (above 16 ohms), it indicates that the water heater element has a problem with conductivity. This could be caused by scale buildup, corrosion, or a faulty heating element. In these instances, it is advisable to clean or descale the element and retest it to see if the resistance values improve. If not, it may be necessary to replace the element altogether.
Open Circuit:
If the resistance reading is infinity (no reading at all), it means that the water heater element has an open circuit. This indicates a break or damage in the element, resulting in a complete interruption of the electrical current. In such cases, the element must be replaced as it cannot be repaired.
Comparing Test Results:
When interpreting the test results, it is essential to compare the resistance values obtained during the test with the manufacturer’s specifications. The normal range may vary depending on the specific model and brand of the water heater element. Always consult the manufacturer’s documentation or seek professional guidance to ensure accurate interpretation and appropriate actions.
Considerations:
It is crucial to understand that resistance readings serve as an indicator of the condition of the water heater element but may not always tell the full story. Other factors can also contribute to the performance and efficiency of the element, such as the age of the water heater, water quality, and maintenance history. Regular maintenance and inspection of the water heater system are recommended for optimal functioning.
Summary:
Interpreting the results of the water heater element test is a crucial step in determining its condition and identifying any potential issues. Normal resistance readings fall within a specific range, while low or high resistance readings indicate problems with the element’s functionality. An open circuit reading signifies a complete interruption of electrical current. Always compare the test results with the manufacturer’s specifications and consider other factors that may affect the element’s performance. Regular maintenance and professional guidance contribute to a well-functioning water heater system in the long run.

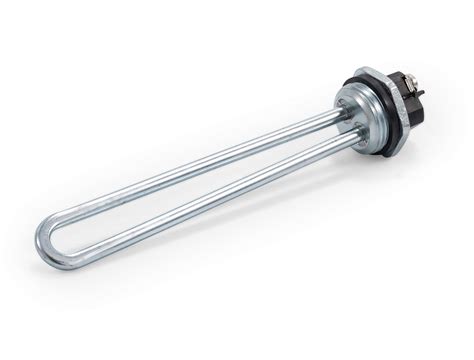

Replacing a Faulty Water Heater Element
Replacing a faulty water heater element is a relatively simple process that can be done by most homeowners. In this section, we will provide a detailed step-by-step guide on how to replace a faulty water heater element. This guide will cover everything from purchasing a new element, to draining the tank, and finally, installing the new element.
Purchasing a New Water Heater Element
The first step in replacing a faulty water heater element is to purchase a new one. To do this, you will need to determine the specifications of your current water heater element. This information can usually be found in the owner’s manual or on the existing element itself. Make sure to take note of the voltage, wattage, and size of the element.
Next, visit your local home improvement store or plumbing supply shop to find a replacement element. It is important to get an element that matches the specifications of your current one to ensure compatibility and proper functioning of your water heater.
Draining the Tank
Before you can install the new water heater element, you will need to drain the tank. This is necessary to prevent any accidents or damage while working on the heater. To drain the tank, follow these steps:
- Turn off the power supply to the water heater. This is usually done by flipping the circuit breaker or shutting off the gas supply.
- Locate the drain valve at the bottom of the tank. Attach a garden hose to the valve and place the other end in a suitable drainage area or a bucket.
- Open the drain valve by turning it counterclockwise. This will allow the water to flow out of the tank through the garden hose. Be cautious as the water may be hot.
- Wait until the tank is completely drained. You can check this by turning on a hot water faucet in your house. If no water comes out, the tank is empty.
Remember to wait for the tank to cool down before proceeding with the installation of the new element.
Installing the New Water Heater Element
Once the tank is drained and cooled, you can start installing the new water heater element. Follow these steps:
- Locate the access panel on the side of the water heater. This panel provides access to the heating elements.
- Remove the access panel by unscrewing the screws. Keep the screws in a safe place to avoid losing them.
- Disconnect the wires from the faulty element using a pair of pliers. Make note of which wire connects to which terminal for easy reconnection later.
- Using an element wrench or a large adjustable wrench, unscrew the faulty element from the water heater tank in a counterclockwise direction.
- Wrap the threads of the new element with Teflon tape to provide a watertight seal.
- Insert the new element into the tank and tighten it with the element wrench or adjustable wrench in a clockwise direction.
- Reconnect the wires to the new element, making sure to attach them to the correct terminals.
- Replace the access panel and securely screw in the screws.
Once the new element is installed and all the connections are secure, you can turn the power supply back on and test the water heater. Make sure to fill the tank with water before turning on the power to avoid damage to the element.
By following these simple steps, you can successfully replace a faulty water heater element and restore hot water in your home. Remember to always exercise caution and, if unsure, consult a professional plumber for assistance.
Conclusion
In conclusion, regularly testing the water heater element is of utmost importance in order to ensure the efficient functioning and longevity of your water heater. By following the step-by-step testing process outlined in this article, you can identify any potential issues with your water heater element and take the necessary steps to address them.
Regular testing allows you to catch any problems early on, preventing more serious issues from occurring and potentially saving you from expensive repairs or replacements in the future. Additionally, it ensures that your water heater is operating at its optimal level, providing you with hot water whenever you need it.
The testing process itself is relatively simple and can be done without the need for professional assistance. By utilizing basic tools such as a multimeter and following the instructions provided, you can easily determine if your water heater element is functioning correctly or if it requires maintenance.
The first step in testing the water heater element is to turn off the power supply to the water heater. This is crucial to ensure your safety during the testing process. Once the power is off, you can proceed to remove the access panel or cover to gain access to the heating element.
Next, you will need to use a multitester or multimeter to measure the resistance of the heating element. This can be done by setting the multimeter to the resistance or ohms function and placing the test leads onto the terminals of the heating element. The multimeter will then display the resistance reading, which can be compared to the manufacturer’s specifications to determine if the element is functioning within the expected range.
If the resistance reading is significantly higher or lower than the manufacturer’s specifications, it is an indication that the heating element is faulty and needs to be replaced. However, if the reading falls within the expected range, it suggests that the element is functioning correctly.
Once you have completed the resistance test, you can proceed to visually inspect the heating element for any signs of damage or corrosion. If you notice any issues such as a broken or discolored element, it is a clear indication that the element needs to be replaced.
In conclusion, regularly testing the water heater element is a crucial maintenance task that should not be overlooked. By following the simple testing process outlined in this article, you can ensure that your water heater is operating efficiently and avoid costly repairs or replacements. So, make it a habit to test your water heater element periodically for a hassle-free experience with hot water throughout the year.
