How to Replace a Circuit Breaker: Step-by-Step Guide for Secure Electrical System Maintenance

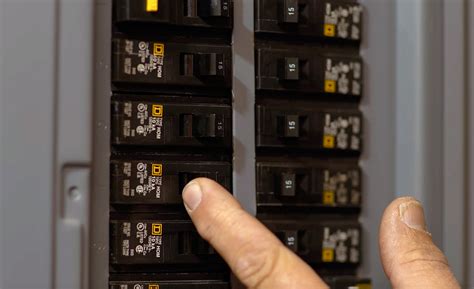

breaker replacement

Replacing a breaker is an essential skill that every homeowner should possess. Understanding the process is crucial as it ensures the safety and functionality of the electrical system in your home. Breakers, also known as circuit breakers, are devices that protect the electrical circuits from overload or short circuits. Over time, breakers can become worn out or faulty, leading to potential electrical hazards. Therefore, knowing how to replace a breaker can save you from inconvenience, expensive repairs, and even hazards such as electrical fires.

Understanding Breakers

Understanding Breakers

Breakers play a vital role in the electrical system of our homes and buildings, acting as a crucial line of defense against dangerous electrical currents. Understanding their purpose and function is essential to ensure the safety and proper functioning of our electrical systems.

When it comes to electricity, safety should always be the top priority. Breakers serve as automatic switches designed to protect the electrical circuit from overloads and short circuits that could lead to fires or severe damage. They act as barriers, preventing excessive current flow and shutting down the circuit if necessary to prevent any danger.

Breakers consist of a switch and a bimetallic strip or an electromagnet, which are triggered when the current passing through the circuit exceeds a predetermined limit. When this happens, the breaker trips, interrupting the flow of electricity and stopping any potential hazards from occurring. Once the issue is resolved, the breaker can be reset, restoring power to the circuit.

It is important to know that breakers are not meant to be a long-term solution. They do wear out over time and can become less effective. Regular maintenance and inspection of breakers are necessary to ensure their proper functionality. If you notice any signs of wear, damage, or consistent tripping, it is essential to replace the breaker promptly.

Common Signs of Breaker Damage

Common Signs of Breaker Damage

Identifying signs of breaker damage can help you determine whether it is time for a replacement. A few common signs to look out for include:

1. Frequent tripping: If your breaker trips often, especially when using multiple electrical devices simultaneously, it might be an indication of an overloaded circuit. This can be a sign that you need a breaker with a higher amp rating.

2. Burning smell: If you notice a distinctive burning smell coming from the breaker panel, it is essential to address the issue immediately. It could indicate that the breaker has been damaged or that there is a wiring problem that needs attention.

3. Buzzing or cracking sounds: Unusual sounds, such as buzzing or cracking, coming from the breaker panel can be a sign of loose or faulty wiring. This situation requires immediate examination and possible replacement of the breaker.

4. Warm breaker panel: If your breaker panel feels warm to the touch, it might be a sign of an overloaded circuit or loose connections. This situation can pose a potential fire hazard and needs prompt professional assistance.

5. Flickering lights: When lights flicker or dim without any apparent reason, it may suggest a breaker problem. This could indicate loose connections, a faulty breaker, or even outdated electrical wiring that needs attention.

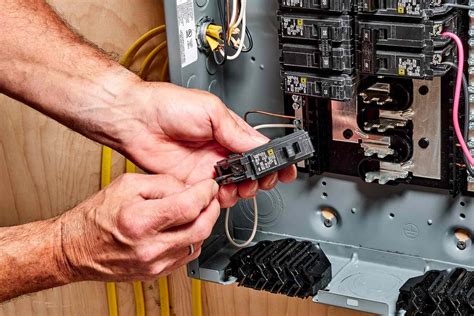

Replacing a Breaker

Replacing a Breaker

Replacing a breaker should always be done by a qualified electrician, as it involves working with live electrical components. However, having a basic understanding of the process can be helpful:

1. Turn off the power: Start by switching off the main breaker to cut off power to the entire panel. This step ensures your safety while replacing the faulty breaker.

2. Remove the panel cover: Unscrew the screws holding the panel cover in place and carefully remove it, revealing the inner components.

3. Locate the faulty breaker: Identify the breaker that needs replacement by checking for signs of damage or consistent tripping.

4. Disconnect the wiring: Gently remove the wires connected to the old breaker. Take note of the order and location of each wire to ensure proper reconnection later.

5. Remove the old breaker: Using a screwdriver, release the breaker by unscrewing it from the breaker panel. Take care not to damage any other components or wiring during this process.

6. Install the new breaker: Insert the new breaker into the vacant slot by aligning it with the prongs or clips on the panel. Secure it in place by tightening the screws.

7. Reconnect the wiring: Carefully reconnect the wires to the new breaker, following the same order and location as before. Ensure they are securely fastened and properly seated.

8. Replace the panel cover: Fit the panel cover back into position and secure it with the screws. Double-check that everything is correctly aligned and tightly fastened.

9. Turn on the power: Finally, switch the main breaker back on to restore power to the electrical system. Test the circuit with caution to ensure the new breaker is functioning correctly.

Remember, working with electricity can be dangerous, and it is always best to seek professional assistance. A qualified electrician has the necessary knowledge and experience to handle breaker replacements safely and efficiently.

In conclusion, understanding breakers is crucial for maintaining electrical safety. Being aware of signs of damage and knowing the steps for replacing a faulty breaker can help prevent accidents and ensure the proper functioning of the electrical system. Regular maintenance and professional inspections are encouraged to identify any issues promptly and keep your home or building safe.

Tools and Materials

Tools and Materials

When it comes to replacing a breaker, having the right tools and materials is crucial. Without them, you won’t be able to complete the task properly and safely. So, before you begin, make sure you gather the following items:

1. Screwdriver: A screwdriver is an essential tool for replacing a breaker. It is used to remove the screws that hold the breaker in place. Make sure you choose a screwdriver that fits the screws on your breaker to avoid any damage.

2. Multimeter: A multimeter is used to measure the electrical voltage and continuity in the circuit. It helps in diagnosing any issues with the breaker and ensures that it is functioning properly. Before using the multimeter, make sure you read the instructions carefully to understand how to use it correctly.

3. Replacement breaker: The replacement breaker is the main item you will need to complete the replacement process. Make sure you purchase a breaker that is compatible with your circuit and can handle the electrical load of your appliances. It is recommended to consult a professional or an electrician if you are unsure about which replacement breaker to choose.

4. Safety gloves: Safety should always be a top priority when working with electrical components. Wearing safety gloves helps protect your hands from any potential electric shocks or injuries. Make sure to choose gloves that are specifically designed for electrical work and are properly insulated.

Additionally, it is always a good idea to have a flashlight and a pair of safety goggles on hand. A flashlight will help you see what you are doing in case the area is poorly lit, and safety goggles will protect your eyes from any flying debris or particles that may occur during the replacement process.

Remember, when working with electricity, it is essential to turn off the power to the circuit at the main electrical panel and follow proper safety procedures. If you are unsure about any aspect of replacing a breaker, it is recommended to seek professional help to avoid any accidents or further damage to your electrical system.

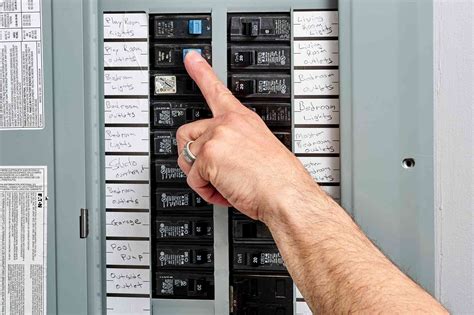

Turning off the Power

Turning off the Power

Turning off the power to the breaker panel is an essential step when it comes to replacing a breaker. By doing so, you can prevent any electrical mishaps and ensure your safety throughout the process. In this section, we will provide you with a detailed guide on how to turn off the power smoothly and efficiently.

1. Locate the Main Breaker: Before you proceed with turning off the power, it is crucial to locate the main breaker panel in your home. Typically, the main breaker is situated in a readily accessible area such as the basement, utility room, or garage. Once you find it, make sure you have a clear pathway to reach it without any obstacles.

2. Assess the Electrical Load: Take a moment to evaluate the overall electrical load in your home. Turning off the power to the breaker panel will cut off electricity to all the circuits, appliances, and lighting fixtures. It’s essential to consider any potential inconveniences or safety concerns that may arise from temporarily disconnecting power from your entire house.

3. Inform Household Members: Inform everyone in your household about the upcoming power outage. This will help prevent any accidents or misunderstandings, particularly if someone is working on a sensitive electrical device or using a powered medical device. It’s necessary to communicate the estimated duration of the power interruption, including any potential delays.

4. Gather the Necessary Tools: Before you proceed with turning off the power, gather all the necessary tools and safety equipment. This may include a flashlight, gloves, voltage tester, and screwdriver. Ensuring you have everything readily available will make the process smoother and more efficient.

5. Turn off All Appliances and Lights: Begin by turning off all appliances and lights in your home. This will minimize the risk of electrical surges and potential damage to sensitive devices when you switch off the power at the breaker panel. Make a mental checklist or go room by room to ensure that everything is turned off.

6. Turning off the Power at the Breaker Panel: Now, it’s time to turn off the power at the breaker panel. Carefully unscrew the panel cover by removing the screws with a screwdriver. Set the cover aside in a safe location, ensuring it doesn’t interfere with your movement or access to the breakers.

To identify the main breaker, look for the switch that is larger than the other breakers. It is typically located at the top or bottom of the panel. Flip the main breaker switch in the opposite direction of the ON position. This will completely cut off power to your home. You can use a voltage tester to verify that there is no electricity flowing in the panel before you proceed with any further steps.

It’s important to note that turning off the main breaker will disrupt power to the entire house. This means that essential items such as refrigerators, heating systems, and security systems will also be temporarily disconnected. Plan accordingly to minimize any inconvenience during the power outage.

7. Double-Check Power Disconnection: After turning off the main breaker, use a voltage tester to double-check that the power is fully disconnected. Follow the instructions provided with the voltage tester to ensure accurate readings. This additional step will provide you with peace of mind that no electricity is running through the panel while you work on replacing the breaker.

Remember, your safety is paramount during this process. If you are unsure about any steps or lack experience working with electricity, it is always recommended to seek professional assistance. Electricians have the necessary expertise to handle electrical tasks safely and efficiently.

By following these steps and turning off the power properly, you are taking the necessary precautions to ensure a smooth and safe breaker replacement process. Remember to exercise caution and prioritize safety at all times when working with electricity.

Removing the Old Breaker

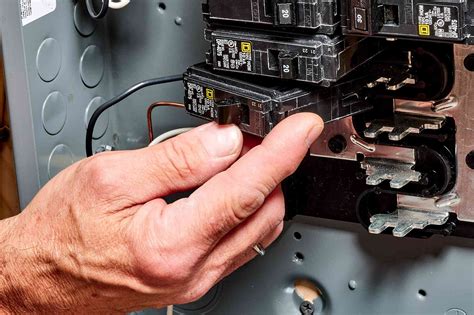

removing old breaker

Replacing a faulty breaker is an essential skill that any homeowner should have. Over time, breakers can wear out or become damaged, resulting in electrical issues and potential safety hazards. If you are experiencing problems with your breaker, it is crucial to replace it promptly and correctly. This section will guide you through the step-by-step process of safely removing the old breaker, ensuring that you can complete this task with confidence and ease.

Before you begin, it is important to remember that working with electricity can be dangerous. Make sure to turn off the power supply to the circuit you will be working on by switching off the main circuit breaker in your electrical panel. Additionally, if you are unsure about any step or lack experience in electrical work, it is recommended to seek professional assistance.

Step 1: Gather the Necessary Tools

Before you start removing the old breaker, make sure you have the following tools readily available:

– Screwdriver (usually a flathead or a Phillips head, depending on the screws used in your panel)
– Pliers or wire strippers
– Voltage tester or multimeter (to ensure the power is off)
– Safety gloves and glasses

Step 2: Identify the Faulty Breaker

Locate the breaker that needs to be replaced. It should be indicated by either a tripped position or a malfunctioning circuit that has lost power. It’s important to be certain which breaker is faulty to avoid unnecessary replacements or potentially interrupting power to essential circuits.

Step 3: Turn off the Power

As mentioned earlier, turn off the power supply to the circuit you will be working on by switching off the main circuit breaker in your electrical panel. This step is crucial to prevent any accidents or electrical shocks during the process.

Step 4: Unscrew the Panel Cover

Using the appropriate screwdriver, carefully remove the screws holding the panel cover in place. Set the cover aside in a safe location, away from your work area, to avoid any tripping hazards or damage to the cover.

Step 5: Identify the Breaker’s Wiring

Once the panel cover is removed, you will see the breakers and their corresponding wires. Take a moment to examine the wiring connected to the faulty breaker. Typically, a breaker will have one or two wires connected to it, depending on the circuit’s configuration.

Step 6: Loosen the Screws

Using your screwdriver, gently loosen the screws that secure the wires to the faulty breaker. In most cases, the screws will need to be turned counterclockwise to loosen. Take care not to apply excessive force, as this may damage the screws or the breaker.

Step 7: Detach the Wires

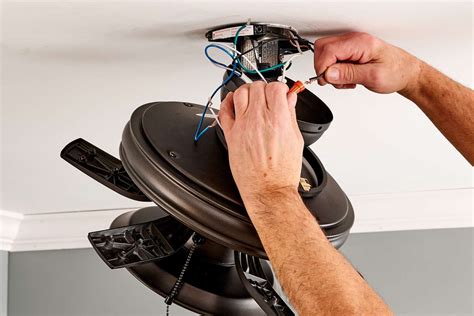

detaching wires

Now, it is time to detach the wires from the faulty breaker. Each wire should be carefully removed by pulling it gently straight out or by loosening a screw terminal that holds the wire in place. If there are multiple wires connected to the breaker, take note of their placement for proper reconnection later.

When detaching the wires, it is vital to ensure that they don’t touch any other metal parts of the electrical panel or other wires. This precaution helps prevent electrical shocks or potential short circuits.

With the detachment of the wires, you have successfully completed the process of removing the old breaker. The next steps involve installing the replacement breaker, which will be discussed in a subsequent section.
