Introduction
Lighting a pilot light on a water heater is an important skill that every homeowner should possess. It is a crucial step in maintaining the functionality of the water heater and ensuring a constant supply of hot water. Knowing how to properly light a pilot light can save you from expensive repairs and inconveniences caused by a malfunctioning water heater. In this article, we will guide you through the process of lighting a pilot light on a water heater, providing you with the knowledge and confidence needed to handle this task on your own.
Understanding the Pilot Light
The pilot light plays a critical role in the operation of a water heater. It is a small, continuously burning flame that ignites the main burner when hot water is needed. In simpler terms, the pilot light is like a tiny torch that is always lit, ready to ignite the burner and provide hot water whenever required.
The pilot light is typically located at the bottom of the water heater, near the gas burner or control valve. It is created by a small amount of gas flowing through a pilot tubing and ignites when it comes into contact with a flame source, such as a spark or an electric igniter.
Once the pilot light is lit, it produces a small, steady flame that is crucial for heating the water. The flame is usually blue in color, indicating a good combustion process. If the flame appears yellow or flickering, it could be a sign of an issue with the gas supply or burner efficiency, which may require professional attention.
In addition to providing the ignition source, the pilot light also serves as an important safety mechanism. It is designed to continuously monitor the status of the burner. If the pilot light goes out or detects any malfunction, it automatically shuts off the flow of gas to prevent the accumulation of gas and potential hazards.
To ensure safe and efficient operation, it is important to understand the key components of a pilot light. The pilot assembly consists of the pilot tubing, thermocouple, and pilot burner. The thermocouple is a safety device that detects the presence of a flame. If the pilot light goes out, the thermocouple cools down and sends a signal to the gas valve to shut off the gas supply.
In some water heaters, especially newer models, electronic ignition systems are used instead of a standing pilot light. These systems use electric spark or hot surface igniters to ignite the gas burner when hot water is needed. While these systems eliminate the need for a continuously burning pilot light, they still serve the same purpose of providing ignition and safety functions. They are generally more energy-efficient and offer better control over the heating process.
In conclusion, the pilot light is a crucial component of a water heater that ensures hot water is readily available when needed. Whether it is a traditional pilot light or an electronic ignition system, proper understanding and maintenance of these components are essential for safe and efficient operation of the water heater.
Precautions and Safety Measures
Before attempting to light a pilot light on a water heater, it is crucial to follow important safety precautions to ensure the process is conducted safely and effectively. By taking the necessary steps, you can minimize the risk of accidents and potential hazards. Below, we outline the key safety measures you should consider:
1. Familiarize Yourself with the Water Heater
Prior to attempting to light the pilot light, take the time to familiarize yourself with the water heater. Locate the pilot light assembly, gas valve, and any controls or indicators on the unit. Review the manufacturer’s instructions or manual for specific guidance pertaining to your model.

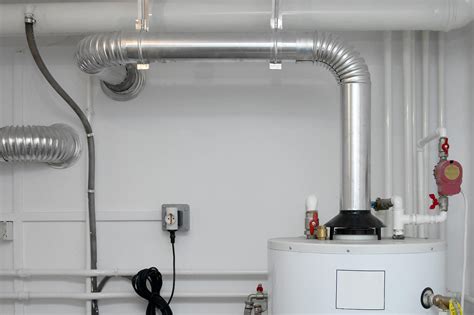

2. Ensure Proper Ventilation
Proper ventilation is essential when dealing with a gas water heater. Ensure that the area around the water heater is well-ventilated to prevent the accumulation of gas fumes. Keep the space clear of any combustible materials and ensure that vents and flues are unobstructed.
3. Turn Off the Gas Supply
Before attempting to light the pilot light, the gas supply to the water heater must be turned off. Locate the gas valve on the unit and turn it to the “off” position. This step is crucial to prevent any gas leaks or potential fire hazards during the lighting process.
To ensure the gas supply is properly shut off, it is recommended to check for any gas smells or signs of leaking before proceeding. If you detect a gas odor or suspect a leak, evacuate the area immediately and contact a qualified professional to assess and fix the issue.
4. Check for Gas Leaks
Prior to attempting to light the pilot light, it is important to check for any gas leaks. Make a solution of soapy water and apply it to the gas connections, including the gas valve and the pilot light assembly. If you observe any bubbles forming, this indicates a gas leak. In such cases, immediately shut off the gas supply and seek professional assistance to fix the issue before proceeding.
Remember, gas leaks can pose serious safety risks, so it is essential to take appropriate measures to detect and address them promptly.
5. Have Proper Tools Ready
Ensure you have the necessary tools readily available before attempting to light the pilot light. These may include a long lighter or matchstick, a flashlight for better visibility, and any specific tools required by your water heater’s manufacturer. Having the proper tools at hand will ensure a smooth and safe process.
6. Follow Manufacturer’s Instructions
Always refer to the manufacturer’s instructions or manual for guidance specific to your water heater model. Each water heater may have slightly different lighting procedures, so following the manufacturer’s guidelines is essential for a successful pilot light ignition.
7. Seek Professional Help If Uncertain
If you are uncertain about how to safely light the pilot light or encounter any difficulties during the process, it is always better to seek professional assistance. Contact a licensed plumber or an experienced technician to ensure the job is done correctly and to avoid any potential hazards.
Remember, the safety of yourself and others should always be the top priority when dealing with gas appliances. By following these precautions and safety measures, you can confidently and securely light the pilot light on your water heater.
Gathering the Necessary Tools
Before attempting to light a pilot light on your water heater, it is important to gather all the necessary tools and materials. Having everything prepared beforehand will ensure a smooth process and minimize any potential setbacks. Here are the essential items you will need:
1. Long-Handled Lighter or Matches: Since the pilot light is typically located inside the water heater, you will need a long-handled lighter or matches to reach and ignite it. These tools will allow you to safely light the pilot light without coming into direct contact with it.
2. Flashlight: A flashlight will come in handy if your water heater is located in a dimly lit area or if there is limited visibility. It will help you locate the pilot light and allow you to see any small parts or components that may be difficult to spot otherwise.
3. Protective Gloves: It is always wise to wear protective gloves when working with any type of gas appliance. This will protect your hands from potential burns or injuries, especially if you need to access the pilot light through small openings or tight spaces.
4. Owner’s Manual: Your water heater’s owner’s manual is an invaluable resource that provides specific instructions on how to safely light the pilot light. It contains essential information regarding the location of the pilot light, the type of gas used, and step-by-step instructions for ignition. If you misplaced your manual, you may be able to find a digital copy on the manufacturer’s website or by contacting their customer support.
5. Pliers: Pliers may be needed to remove any covers or panels that are obstructing access to the pilot light. If your water heater has a removable burner access panel, you might require pliers to unscrew and remove it safely.
6. Safety Goggles: While not always necessary, safety goggles can provide an extra layer of protection for your eyes. They can shield your eyes from any potential gas leaks or loose debris that may be present around the pilot light area.
7. Gas Valve Key or Screwdriver: Depending on the type of water heater you have, you might need a gas valve key or a screwdriver to turn the gas control knob. This tool will allow you to shut off the gas supply before attempting to light the pilot light, ensuring your safety during the process.
8. Fire Extinguisher: While not exactly a tool, having a fire extinguisher nearby is highly recommended as a safety precaution. In case of any unexpected fires or accidents during the pilot light ignition process, you can quickly extinguish the flames and prevent further damage.
9. Alternative Heat Source (Optional): If you are unable to find a long-handled lighter or matches, an alternative heat source like a portable butane torch can be used to safely ignite the pilot light.
Remember, these tools and materials are essential for successfully lighting a pilot light on a water heater. It is vital to exercise caution and follow the instructions provided in your water heater’s owner’s manual. If you feel uncomfortable or unsure about the process, it is always best to contact a qualified professional for assistance.

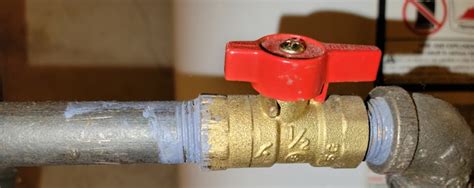

Step 1: Turning off the gas supply
Before lighting the pilot light, it is crucial to ensure that the gas supply to the water heater is turned off. This step is essential for safety reasons. Locate the gas shut-off valve, usually situated near the water heater. It may be a lever, a knob, or a switch. Turn the valve clockwise to shut off the gas supply. Make sure it is completely closed.

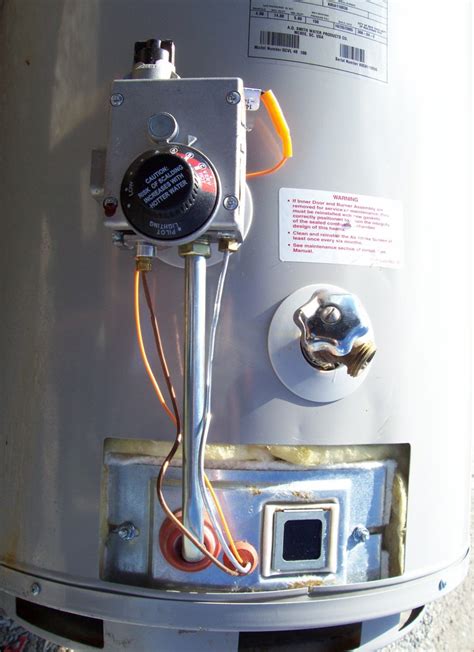

Step 2: Locating the pilot light and control knob
Next, you need to find the pilot light and control knob on your water heater. Typically, these components are located near the bottom of the water heater unit. Look for a small door or panel on the front of the heater. Open the door or remove the panel to access the pilot light and control knob.
Step 3: Preparing the area
Ensure that the area around the water heater is clear of any flammable materials, such as paper, curtains, or chemicals. It is important to have a clutter-free environment to prevent any accidents during the pilot light ignition process.
Step 4: Ignition tool and safety precautions
Before proceeding, make sure you have the necessary ignition tool. Most water heaters require a long-reach lighter or a fireplace match to ignite the pilot light. Avoid using regular matches or lighters without an extended reach, as they can put your safety at risk. Additionally, keep your face away from the pilot light area during the ignition process to avoid injury.
Step 5: Lighting the pilot light
Finally, it’s time to light the pilot light. Locate the control knob and turn it to the “Pilot” position. Start by pressing and holding down the control knob, allowing gas to flow to the pilot light. While holding down the knob, use the ignition tool to ignite the pilot light. Position the tool near the pilot burner and press the ignition switch or trigger to generate a spark. As soon as the pilot light ignites, continue to hold the control knob down for about 30 seconds to ensure the pilot light remains lit.
After the 30 seconds have elapsed, release the control knob. The pilot light should stay lit. If it doesn’t, try repeating the process, ensuring that the control knob is held down long enough to establish a strong pilot flame. Once the pilot light is successfully lit, you can proceed to turn on the gas supply by turning the gas shut-off valve counterclockwise. You can then set the water heater to the desired temperature and wait for the water to heat up.
Remember, if you experience any difficulties or if the pilot light continues to go out, it is recommended to consult a professional technician who can assess and address any potential issues with your water heater.
1. Pilot Light Won’t Stay Lit
If you successfully ignite the pilot light, but it won’t stay lit, there might be a couple of reasons for this issue. Firstly, check if the thermocouple is properly positioned and in contact with the pilot flame. The thermocouple is a heat-sensitive device that detects if the pilot light is on. If it is not in the correct position, the main gas valve will shut off, causing the pilot light to go out. Adjust the position of the thermocouple if needed.
Another possible reason is a dirty or damaged thermocouple. Over time, the thermocouple can accumulate dust and debris, affecting its functionality. Clean the thermocouple using a cloth or soft brush to remove any dirt or debris. If it is damaged, you may need to replace it.
In some cases, the gas pressure might be too low for the pilot light to stay lit. Contact a professional plumber or gas company to check and adjust the gas pressure if necessary.

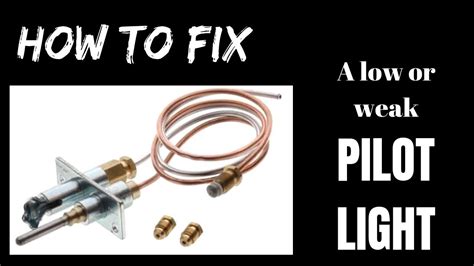

2. Weak Pilot Flame
If the pilot flame appears weak or keeps going out, it could be due to a clogged pilot orifice. The pilot orifice is a small opening where the gas flows through to create the flame. Use a needle or wire to gently clean any debris or blockages from the orifice. Be cautious not to damage the orifice while cleaning.
Another reason for a weak pilot flame is insufficient gas supply. Ensure that the gas valve supplying the heater is fully open. If it is partially closed, the pilot flame may not receive enough gas to burn properly. Adjust the gas valve accordingly to allow for a stronger pilot flame.
3. No Gas Supply
If you are unable to ignite the pilot light at all, the first step is to check if there is gas supply to the water heater. Make sure the gas valve supplying the heater is fully open, as a partially closed valve can prevent gas from reaching the pilot light. If the valve is open and you still don’t have gas supply, there may be an issue with the gas line or the gas supply itself. Contact a professional plumber or gas company to investigate and resolve the issue.
4. Faulty Control Valve
If you have tried all the troubleshooting steps mentioned above and still cannot light the pilot light, there might be a problem with the control valve. The control valve regulates the flow of gas to the pilot and main burner. A faulty control valve can prevent the gas from reaching the pilot light. In this case, it is recommended to seek assistance from a professional plumber or technician to inspect and repair the control valve.
5. Air in the Gas Line
Occasionally, air may get trapped in the gas line when attempting to light the pilot light, causing difficulties in ignition. To purge the air out of the gas line, you will need to follow a specific process called “bleeding the line.” Start by turning off the gas supply valve and allowing any accumulated gas to dissipate. Once all the gas has dissipated, you can turn the valve back on and attempt to relight the pilot following the manufacturer’s instructions. This process should help remove any air bubbles that might be hindering the pilot light ignition.
6. Flammable Vapors
It is crucial to be aware of the potential threat of flammable vapors while attempting to light a pilot light. Flammable vapors can be present in the surrounding area due to the use of gasoline, solvents, or other similar substances. These vapors can ignite easily, causing a fire or explosion.
To ensure safety, always follow the manufacturer’s instructions and warnings. Many modern water heaters are equipped with a safety feature called a “Flammable Vapor Ignition-Resistant (FVIR)” system, which prevents the pilot light from igniting if flammable vapors are present. If your water heater does not have this feature, make sure the area is well-ventilated and free from any flammable substances before attempting to light the pilot. If you smell gas or suspect the presence of flammable vapors, immediately turn off the gas supply valve, evacuate the area, and contact the gas company or emergency services for assistance.
Always prioritize safety when dealing with gas appliances. If you have any doubts or concerns about lighting the pilot light on your water heater, it is best to consult a professional plumber or technician.

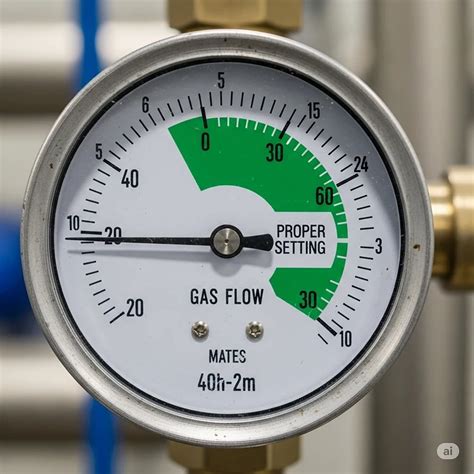

1. Check for Proper Gas Flow
To maintain a consistent flame on the pilot light, it is essential to check for proper gas flow. Start by ensuring that the gas valve is fully open. You can find this valve near the bottom of the water heater. Make sure it is not partially closed or obstructed in any way.
If you suspect a gas leak, it’s crucial to take immediate action. Gas leaks can be dangerous, so if you smell gas or notice any signs of a leak, such as hissing sounds or a rotten egg odor, leave the area and contact a professional plumber or your gas company.

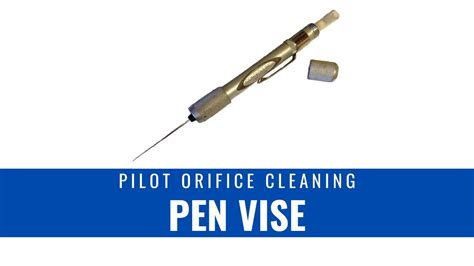

2. Clean the Pilot Orifice
The pilot orifice is a small opening where the gas flows through to reach the pilot light. Over time, it may accumulate dust, debris, or mineral deposits, obstructing the gas flow and disrupting the flame. To clean the orifice:
1. Turn off the gas supply to the water heater.
2. Locate the pilot orifice, which is typically at the end of a small tube near the pilot burner.
3. Use a small brush, such as a toothbrush, to gently clean the orifice. Be careful not to damage or bend it.
4. Once clean, turn the gas supply back on and relight the pilot light according to the manufacturer’s instructions.
3. Adjust the Pilot Flame
An improperly adjusted pilot flame can cause inconsistent heating or even lead to the pilot light going out frequently. To adjust the pilot flame:
1. Locate the pilot adjustment screw, which is often marked on the gas control valve.
2. Turn the screw clockwise to increase the flame size or counterclockwise to decrease it. The flame should be strong enough to reach the thermocouple, ensuring it stays heated.
3. Check the manufacturer’s instructions for the recommended flame size. Typically, the flame should be about 1 inch long and steady.
4. After adjusting the flame, observe its stability for a few minutes to ensure it remains consistent. If it flickers or goes out, repeat the adjustment process.

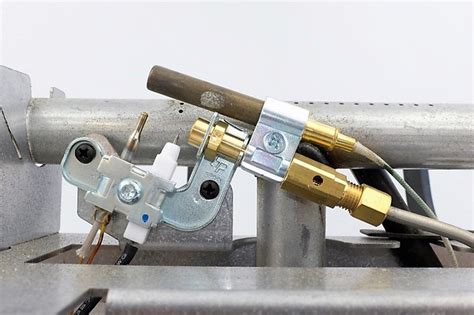

4. Clean the Thermocouple
The thermocouple is a safety device that senses when the pilot light is lit. It generates a small electrical current to keep the gas valve open, allowing the burner to ignite. However, it can accumulate soot or become dirty over time, affecting its functionality.
1. Turn off the gas supply to the water heater.
2. Locate the thermocouple, usually positioned near the pilot light.
3. Gently remove the thermocouple from its mounting bracket.
4. Use fine-grit sandpaper or emery cloth to clean the thermocouple’s tip. Remove any built-up residue or soot.
5. Reinstall the thermocouple and ensure it is securely positioned.
6. Turn the gas supply back on and relight the pilot light.

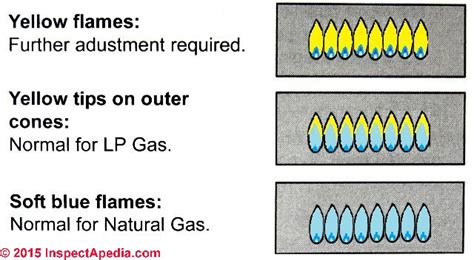

5. Inspect the Flame Color
The color of the pilot flame can provide valuable clues about the heater’s performance. A healthy pilot flame should have a steady blue color, indicating efficient combustion.
Signs of a problematic flame include:
– Yellow flame: This may indicate a dirty pilot burner, dirty gas burners, or inadequate air supply.
– Orange or red flame: These colors can indicate incomplete combustion or the presence of contaminants in the gas supply.
If you notice any abnormal flame colors, it’s best to contact a professional technician to inspect and resolve the issue.
6. Monitor the Pilot Light
Regularly monitoring the pilot light can help identify potential problems before they worsen.
1. Check the pilot light periodically to ensure it remains lit. If you find that it has gone out, try relighting it following the manufacturer’s instructions.
2. If the pilot light continues to go out or frequently needs relighting, there may be an underlying issue that requires professional attention.
3. If you notice any irregularities, such as a flickering or weak flame, it’s advisable to contact a technician for further inspection.
7. Schedule Professional Maintenance
While there are steps you can take to maintain a consistent flame on your water heater’s pilot light, it is essential to schedule regular professional maintenance. Professional technicians have the expertise to identify and resolve potential issues before they escalate, ensuring optimal performance and safety.
During a maintenance visit, a technician can:
– Clean and inspect critical components, such as the burners, flue, and venting system.
– Test the gas pressure to ensure it is within the correct range.
– Check for gas leaks or any other safety concerns.
– Verify the functionality of the thermocouple and gas control valve.
By investing in professional maintenance, you can extend the lifespan of your water heater, improve its efficiency, and have peace of mind knowing it’s operating safely.
Conclusion
In conclusion, lighting a pilot light on a water heater may seem like a daunting task, but with the right knowledge and precautions, it can be done safely and efficiently. Remember to always read the manufacturer’s instructions and follow the specific guidelines for your water heater model.
The key points covered in this article can be summarized as follows:
1. Understand the purpose of the pilot light: The pilot light is responsible for igniting the gas burner, which heats the water in a water heater. It is crucial to ensure the pilot light is functioning correctly for the heater to work efficiently.
2. Turn off the gas supply: Before attempting to light the pilot light, it is essential to turn off the gas supply to the water heater. This prevents any potential gas leaks or accidents during the process.
3. Locate the pilot light assembly: Different water heater models have varying pilot light assembly designs. Familiarize yourself with the specific location and components of the pilot light assembly for your water heater.
4. Follow the manufacturer’s instructions: Every water heater comes with a set of specific instructions for lighting the pilot light. Read these instructions carefully and follow them step by step to ensure safety and proper functioning.
5. Prepare the area: Before attempting to light the pilot light, make sure the area is free from any flammable materials or substances. Keep combustible items away from the water heater to prevent accidents.
6. Use a long lighter or match: To light the pilot light, use a long lighter or match to reach the pilot assembly. This will reduce the risk of burning yourself and ensure a safe ignition.
7. Safely relight the pilot light: Following the manufacturer’s instructions, carefully relight the pilot light by holding the lighter or match near the pilot assembly and pressing the ignition button or turning the gas control knob to the pilot position. Once lit, continue to hold the ignition button or knob for a short duration to allow the thermocouple to heat up.
8. Importance of following safety measures: The most crucial aspect of lighting a pilot light on a water heater is to prioritize safety. Always wear protective gloves and goggles, turn off the gas supply when not in use, and ensure proper ventilation in the area. Any signs of gas leaks or malfunctioning should be addressed immediately by a professional technician.
By following these guidelines and taking necessary precautions, you can safely light the pilot light on your water heater and ensure its smooth operation. Remember, it is always better to seek professional help if you are unsure or uncomfortable performing the task yourself.
By maintaining a well-functioning pilot light, you can enjoy hot water whenever you need it, saving energy and ensuring the longevity of your water heater.
